Structured light
ØFunction: Split or shape a single laser beam to cover a large field of view
ØApplication: monitoring equipment, spot detection, code scanner, face recognition, three-dimensional measurement, thermometer
ØProduct parameter range:

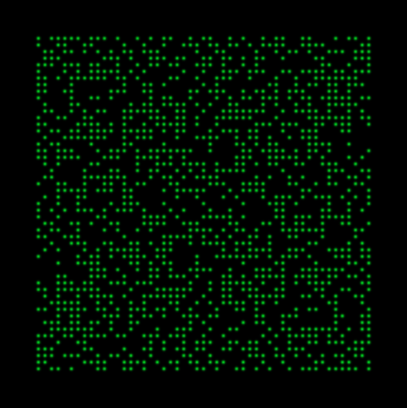

Array mode | Random spot, spot array, multi-line, network | Homogenizer mode | Circle, square, rectangle, branch, custom |
Wavelength range | 193nm ~10.6μm | Exit angle | ≤30° |
Zero order | Can be optimized for human eyes | Material | Polymer glass, plastic, fused silica, zinc selenide, sapphire, silicon |
Ø Typical model reference ：
Number | Wavelength [nm] | Size [nm] | Exit angle [deg] | Output shape | Efficiency [％] |

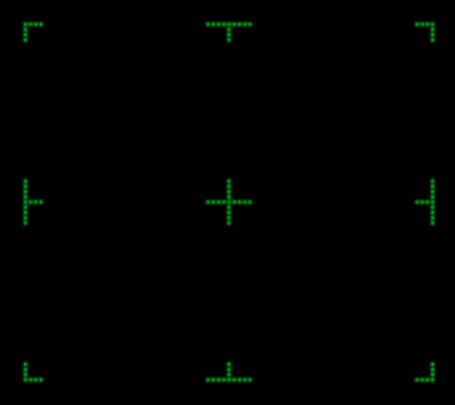

BSP-415 | 532 | 6×8 | 33.3×38.7 | 164[Target] | 63 |

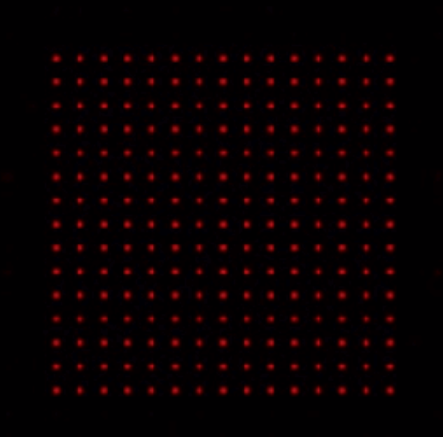

BSP-419 | 905 | 10×10 | 4.994×4.994 | 12×12 [matrix] | 82.2 |
BSP-420 | 850 | 10×10 | 5×5 | Square | 67 |
BSP-424 | 850 | 10×10 | 25.56 | Round | 67.7 |
